Name: Tensile Compression Bending Test Bending Test Bodies Dedicated Servo Hydraulic Universal Tensile And Compression Test Machine
Brand: Tensile Compression Bending Test Bending Test Bodies Dedicated Servo Hydraulic Universal Tensile And Compression Test Machine
SKU: WAW-300E WAW-600E WAW-1000E WAW-1500E WAW-2000E, WAW-300E WAW-600E WAW-1000E WAW-1500E WAW-2000E
Price: 1 USD
Availability: InStock
Rating: 4.6 (155 reviews)

Kenmerken Galerij Productomschrijving Verzoek om een Citaat

Kenmerken

Specificaties

Warranty: 1 Year

Customized support: OEM

Model Number: WAW-300E WAW-600E WAW-1000E WAW-1500E WAW-2000E

Power: Hydraulic

Product name: Steel Rebar Servo Hydraulic Universal Tensile Strength Testing Machine

Application: Tension Compression Bending Flexural Test

Model: WAW-300E WAW-600E WAW-1000E WAW-1500E WAW-2000E

Max load: 300kN 600kN 1000kN 1500kN 2000kN

Testing Sample: metal, steel, rebar, fastener, bolt, FRP rebar etc

Power supply: AC380V

Standard: ASTM A370, ISO6892, ISO7500-1, EN 10002-4

Accuracy: 0.5 Grade

Brand: GT-GoldenTech

Certificate: ISO, CE

Basis informatie

Certificering: ISO, CE

Model Number: WAW-300E WAW-600E WAW-1000E WAW-1500E WAW-2000E, WAW-300E WAW-600E WAW-1000E WAW-1500E WAW-2000E

Betalen & Verzenden Algemene voorwaarden

Packaging Details: Outside package: standard export wooden case, Steel Tensile Testing Machine

Supply Ability: 200 Set/Sets per Month Steel Tensile Testing Machine

Productomschrijving

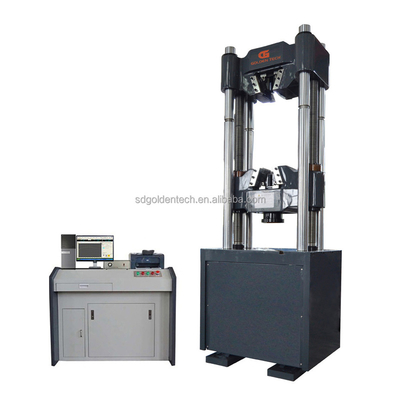

WAW Series 300kN 600kN 1000kN 1500kN 2000kN Steel Rebar Servo Hydraulic Universal Tensile Strength Testing Machine

Product Description

1. Applications & functions

These WAW-E Series Computerized Servo Hydraulic Universal Testing Machines are mainly used for tensile strength, elongation values, etc test of metal materials, such as steel, rebar, metallic sheet, fastener, bolt, steel strand etc. It also can execute compression and bending test with relative fixtures. It is calibrated according to ASTM E4 and ISO 75001. It can meet test standard: ISO 6892, ASTM A615, EN10002-1, ASTM A370, ASTM E8, etc.

2. Main Technical Specifications:

Parameter-Model	WAW-300E	WAW-600E	WAW-1000E	WAW-2000E
Max. testing force (kN)	300	600	1000	2000
Accuracy	±0.5% of reading value
Round specimen diameter range (mm)	φ6-φ26	φ13-φ40	φ13-φ60	Φ15-φ70
Flat specimen thickness range (mm)	0-15	0-30	0-40	0-70
Flat specimen width range (mm)	75	90	100	120
Tensile space (mm)	800	850	850	600
Compression space (mm)	700	700	750	500
Clearance between columns (mm)	465	485	515	700
Upper and lower compress plates size (mm)	φ120	φ160	φ200	φ220
Distance of bending by pass roll (mm)	30-400	30-430	30-380	50-320
Max. piston stroke (mm)	250	250	250	250
Power supply	380V±10%, 50Hz, Three phase
Work environment	10~40℃, Relative humidity≤80%
Dimension of host machine (mm)	1000×600×1980	1100×650×2300	1010×815×2500	1200×1000×3200
Dimension of control cabinet (mm)	1100×640×1000
Weight (kg)	2000	2500	3500	9000

Customer Praise

Packaging & Shipping
