Name: 400mm universal tensile testing machine WDW-300 with extensometer
Brand: 400mm universal tensile testing machine WDW-300 with extensometer
SKU: WDW-300
Price: 1 USD
Availability: InStock
Rating: 5 (166 reviews)

Kenmerken Galerij Productomschrijving Verzoek om een Citaat

Kenmerken

Specificaties

Customized support: OEM

Model Number: WDW-300

Power: Electronic

Max. Load: 10KN-300KN

Load range: 2%-100% of full scale

Test speed: 0.01-500mm/min

Displacement resolution: 0.01mm

Effective test width: 400mm

Effective tensile space: 600mm

Effective compression space: 700mm

Power supply: 220V, 1ph, 1.5KW

Grips: Wedge type,plate type,as consumers demand

Load frame type: Gate type

Basis informatie

Model Number: WDW-300

Betalen & Verzenden Algemene voorwaarden

Packaging Details: 1. Inner package: dust-proof plastic bag 2. Outer package: standard export wooden case with pallet 3. Special packages: according to buyer's requirements 4. The packages suitable for international transport by sea, by air or any other delivery method

Supply Ability: 5 Set/Sets per Month

Productomschrijving

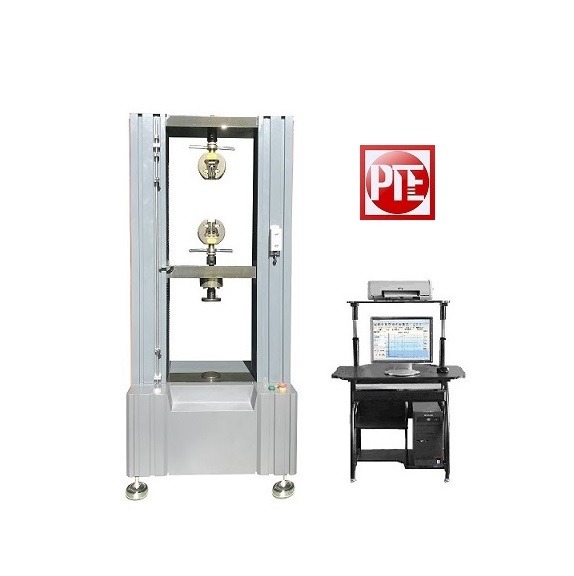

WDW-300 Universal Tensile Testing Machine With Extensometer

Applications:

WDW-300 Electromechanical Manual Universal Bend and Tensile Testing Machines are designed and manufactured according to ASTM, ISO, DIN, GB etc standards.

It is suitable for wide range of material for tension, compression, bending, shearing and low cycle test. With special grips, it can also do very special test as customer’s request.

It is for metal, rubber, plastic, spring, textile, and components testing.

It is widely used in the corresponding industries, research and development, test institutes and training centers etc.

Specifications:

Model	WDW-300	WDW-200	WDW-100	WDW-50	WDW-20	WDW-10
Max. Load	300KN	200KN	100KN	50KN	20KN	10KN
Load accuracy	≤±1%
Load range	2%-100% of full scale
Test speed	0.01-250mm/min		0.01-500mm/min	0.01-500mm/min
Speed accuracy	≤±1%
Displacement resolution	0.01mm
Effective test width	570mm		400mm	400mm
Effective tensile space	600mm			600
Effective compression space	700mm			700mm
Dimension	1130×650×2650mm		830×550×2000mm	760×500×1750mm
Power supply	380V, 3ph, 4/3KW		220V, 1ph, 1.5KW	220V, 1ph, 1KW
Weight	1800KG		720KG	460KG
Grips	Wedge type, plate type and other grips as consumer’s demand
Load frame type	Gate type

Features:

High accuracy servo motor to control test speed.
Ball screw no backlash to guarantee the low noise and high driving efficiency
High accuracy load cell to measure the test load
High accuracy photoelectric encoder to measure the displacement.
Maxtest software has strong function, it can show test load, displacement, test speed, test status, and also has the function of peak load holding, peak displacement holding and self return original position.
Thousands of test fixture can be used according to different test request;--can do different kinds testes
Compact structure with easy operation.
Limit switch and setting in the software to guarantee the safety --double safety

Packaging & Shipping

Packaging Detail:
1. Inner package: dust-proof plastic bag
2. Outer package: standard export wooden case with pallet
3. Special packages: according to buyer's requirements

4. The packages suitable for international transport by sea, by air or any other delivery methods

--------------------------------------------------------------------------------------------------------------------------------------------------------

Our Services

1. Pre-service
--24 Hours online service for your consult.
--Help choose right model,and a series of service,person,advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
