Thuis /Producten/Stalen trekproefmachine/Non Metal Materials 10 KN Electronic Digital Display Universal Testing Machine For Plastic Tensile Testing From China

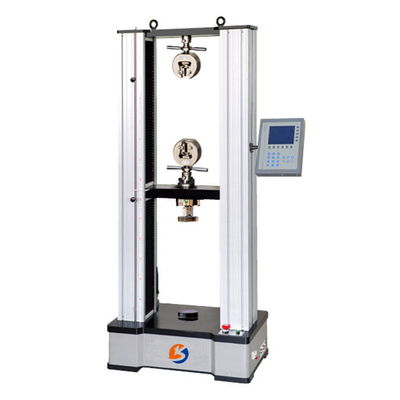

Non Metal Materials 10 KN Electronic Digital Display Universal Testing Machine For Plastic Tensile Testing From China

1 Set
MOQ
$2,250.00(1 - 4 Sets) $1,999.00(5 - 9 Sets) $1,666.00(>=10 Sets)
Prijs
Non Metal Materials 10 KN Electronic Digital Display Universal Testing Machine For Plastic Tensile Testing From China
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Warranty: 1 year, 1 Year
Customized support: OEM
Model Number: WDS-10
Power: Electronic
Power supply: 220V 50Hz
Application: Non Metal Materials
Load accuracy: 1 class
Load range: 2%~100%F S
Max. load: 10kN
Structure: Four-column door
Model Control method: Single chip control
Certificate: ISO CE
Standard: ASTM ISO JB
Certificering: ce, iso
Basis informatie
Certificering: ISO CE, ce, iso
Model Number: WDS-10, Single chip control
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Standard Export Wooden Case Or As Customers' Requirements
Supply Ability: 500 Set/Sets per Month
Productomschrijving
WDW Series Computerized Universal Tensile Testing Machine
Product Description
Introduction

WDW series electromechanical testing machines offer force, displacement or deformation closed loop testing in tension,
compression, flexure, shear, tear and peel etc.
The machine can be equipped with a variety of accessories including: grips, fixtures, compression frames, thermal cabinets and extensometers covering all relevant applications as testing of rubber, plastics, foils, films, textiles, adhesives, paper, foods, foams, timber, wires or other metallic or non-metallic specimens and medical, electronic and other components. The load frames are rigid constructed, providing superior axial and lateral stiffness.
electromechanical tensile testing machine 100 kn Electromechanical Universal Testing Machine electromechanical universal testingmachine 600kn electronic tensile compression testing machine
Standards
ASTMA370, ASTME4, ASTME8, ASTME9, ASTM D882, ASTM D3039,ASTM, D3479, ASTM D7791, ASTM D412, ISO6892
Specification
Model
WDW-10E
WDW-20E
WDW-30E
WDW-50E
WDW-100E
Structure
column and 2 Ball Screw
Max. Load(kN)
10
20
30
50
100
Tensile space(mm)
670
770
650
Compression space(mm)
900
1000
1000
Host Weight (kG)
370
420
680
Power Supply
220V/50-60Hz
Controller
24 bit AD, external controller
communication mode
USB 2.0
Hand control box
320x240 Display Sscreen，8 key control
Servo motor
TAIWAN “TECO”
Speed(mm/min)
0.01-1000
0.01-500
Displacement resolution
0.4 pm
0.2 pm
Load accuracy
Class 0.5, EN 10002-2 Grade0.5, ISO75001-1 Class 0.5, BS 1610 Class 0.5, ASTM E4, and JIS B7721 Class 0.5
Measuring range
0.2％～100％
strong electric drive system
24V voltage control, with over current overloading protection function
Position limit switch
Upper and lower lights
Power
Power light,leak current protection device
Automatic protection
Overload 10%, automatic protection
Please contact KASON directly for best quotation
Application
Application
This series material testing machine product group was primarily developed for standardized tests on ma- terials and components. Used in conjunction with the intuitive HKtest software. Test Typical: wide range of tension, compression, bending, shearing and low cycle test, include metal, building components, rubber, plastic, spring, high strength steel (HSS), aerospace and automotive structures, screws, nuts,large fasteners, wood products etc.
